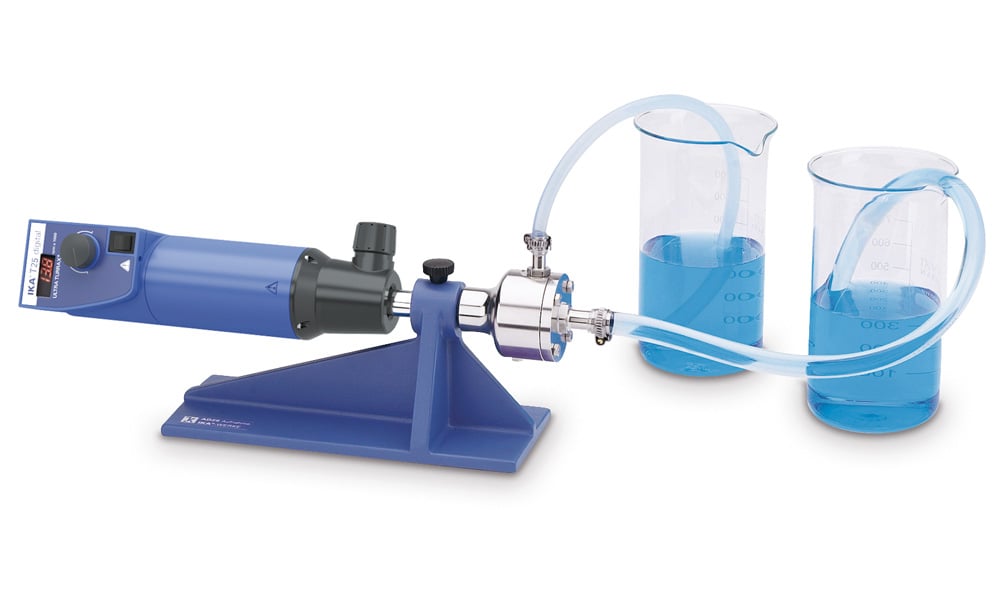

UTL 25 digital Inline ULTRA-TURRAX®
135 681 SEK
- Betala säkert mot faktura
- Möjlighet att få offert per e-post
- Maila oss, vi svarar snabbt!
Beskrivning
Art.nr: 0010006856
For circulation or flow-through processing in the laboratory.
- Simple, compact and sturdy modular design
- Sterilizable, autoclave-compatible
- Table-top or stand-supported device, low space requirement
- Easy disassembly
- Large delivery capacity of 4.4 to 11.6 l/min with open outlet (the mounting of a valve can reduce the flow rate)
- For air-free, sterile, and inline suspension, emulsifying and deagglomeration
- For vacuum or pressurized operation (up to 6 bar)
- If the DK 25.11 is used, air induction is also prevented in batch operation
- Not self-priming
- A pump can be integrated between intake nozzle and vessel. As a result, viscous fluids can be processed
- Not suitable for continuous operation or cyclical continuous operation
- The hoses used should have an inner diameter size of 13 mm (inlet) and 9 mm (outlet) respectively to fit the DK 25.11 flow chamber
Motor rating input [W]: 500
Motor rating output [W]: 300
Pump rate [l/min]: 11.6
Speed range [rpm]: 3000 - 25000
Speed display: scale
Speed adjustment: stepless
Noise without element [dB(A)]: 73
Extension arm diameter [mm]: 13
Extension arm length [mm]: 175
Chamber volume [ml]: 26
Attainable vacuum [mbar]: 1
Pressure max. [bar]: 6
Process type: inline
Dimensions (W x H x D) [mm]: 450 x 120 x 100
Weight [kg]: 3.8
Permissible ambient temperature [°C]: 5 - 40
Permissible relative humidity [%]: 80
Protection class according to DIN EN 60529: IP 20
Voltage [V]: 230
Frequency [Hz]: 50/60
Power input [W]: 500
