    IKA FLOW System

    IKA FLOW System

    64 999 SEK
    Värdet har inte rätt antal decimaler. Det angivna värdet är för litet. Det angivna värdet är för stort. Detta val är obligatoriskt. Ogiltigt värde.

    Du kommer bli meddelad när produkten finns i lager.


    • Betala säkert mot faktura
    • Möjlighet att få offert per e-post
    • Maila oss, vi svarar snabbt!

    Beskrivning

    Art.nr: 0020100742

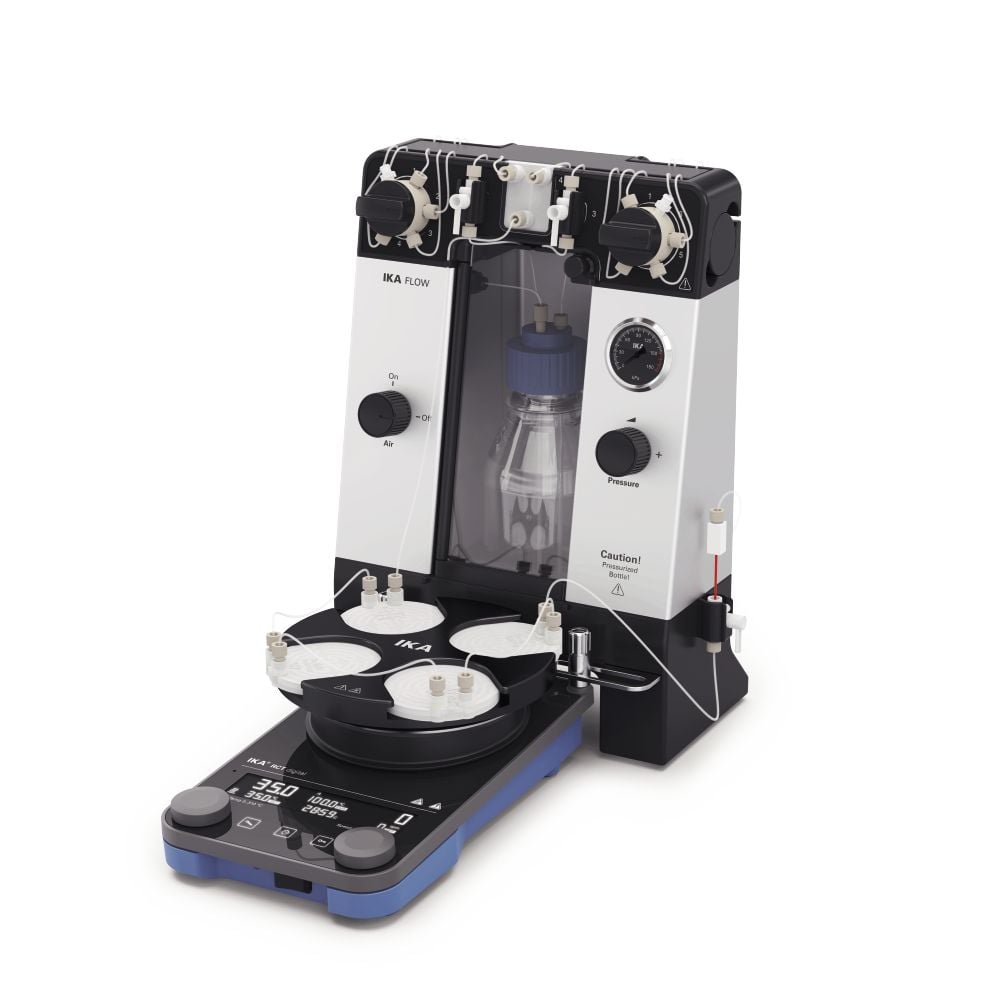

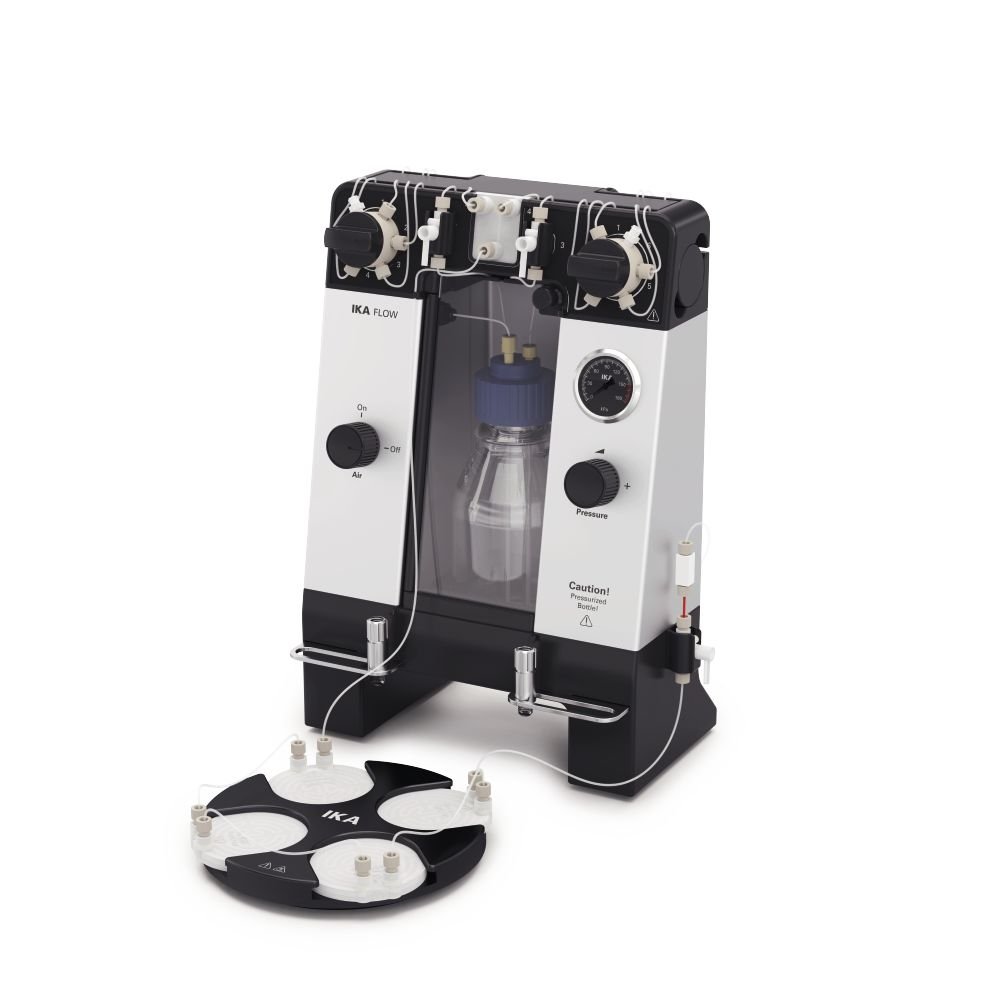

    Flow chemistry made easy and affordable with IKA FLOW. Its secret: Unlike other commercially available flow chemistry equipment, you just purchase the necessary part of the flow chemistry apparatus. The portable IKA FLOW is an attachment that forms a flow chemistry reactor in combination with your IKA magnetic stirrer RCT digital. In addition, it has been designed to be used with any fume hood gas source (with a 6 mm pressure tubing and an adaptor to typical fume hood gas supplies) such as compressed air or nitrogen. IKA FLOW’s scope of delivery includes in addition to the attachment, a glass bottle, a mixing chip, support screws, three on-and-off valves, a heating block, four disc reactors, and a labeled tubing set. We absolutely recommend pairing your IKA FLOW with the RCT digital stirrer hotplate.
    Standard: DIN EN 1595 Max. Solvent Volume [ml]: 500 Connection Type: Push-to-Connect // Screw Fittings Inlet Tubing Outer Diameter [mm]: 6.35 Tubing A Outer Diameter [mm]: 3.2 Tubing A Inner Diameter [mm]: 1.6 Tubing 0-11 Outer Diameter [mm]: 1.6 Tubing 0-9 & 11 Inner Diameter [mm]: 0.8 Main Housing Material: 304 Stainless Steel, Nylon (PA) Main Housing Dimensions (w x h x d) [mm]: 250 x 375 x 140 Main Housing Weight [kg]: 2.7 Heating Block Material: Aluminum Heating Block Dimensions (dia x h) [mm]: 175 x 25.5 Heating Block Weight [kg]: 0.65 Disc Reactor Material: Polypropylene (PP) Disc Reactor Volume [mm^3]: 4092 Max. Input Pressure [MPa ]: 1 Input Pressure: Pressure of the gas from fume hood Max. Working Pressure [kPa ]: 137 Working Pressure: Pressure of the gas in solvent bottle Max. Working Temperature [°C]: 100 Capillary 1 Inner Diameter [mm]: 0.125 Capillary 1 Length [mm]: 50 Capillary 2 Inner Diameter [mm]: 0.125 Capillary 2 Length [mm]: 100 Capillary 3 Inner Diameter [mm]: 0.18 Capillary 3 Length [mm]: 50 Capillary 4 Inner Diameter [mm]: 0.25 Capillary 4 Length [mm]: 100 Dimensions (W x H x D) [mm]: 250 x 400 x 350 Permissible ambient temperature [°C]: 5 - 40
