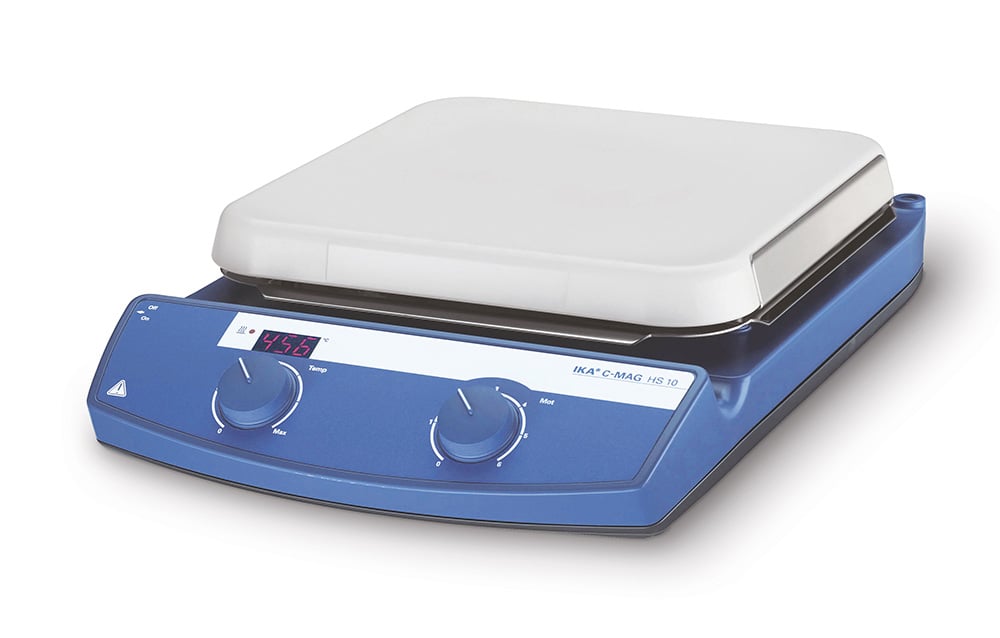

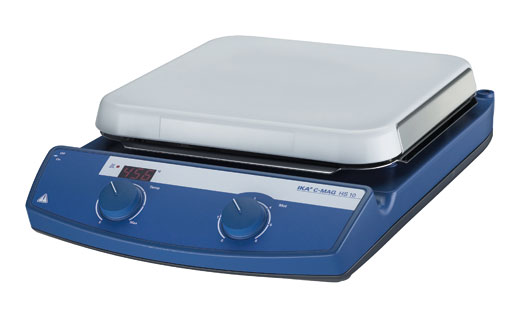

C-MAG HS 10
11 836 SEK
- Betala säkert mot faktura
- Möjlighet att få offert per e-post
- Maila oss, vi svarar snabbt!
Beskrivning
Art.nr: 0003581400
Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 15 l (H2O)
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Exact temperature setting via digital display (LED)
- Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
- Digital error code display
- Elevated control panel for protection against leaking liquids
- Powerful motor for stirring quantities of up to 15 l (H2O)
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Exact temperature setting via digital display (LED)
- Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
- Digital error code display
- Elevated control panel for protection against leaking liquids
Number of stirring positions: 1
Stirring quantity max. per stirring position (H2O) [l]: 15
Maximun load [kg]: 20
Motor rating output [W]: 1.5
Direction of rotation: left
Speed adjustment: scale 0 - 6
Speed range [rpm]: 100 - 1500
Stirring bar length max. [mm]: 80
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) [K]: +1
Heat output [W]: 1500
Temperature display set-value: LED
Heating temperature range [°C]: 50 - 500
Heat control: Turning knob
Temperature setting resolution of heating plate [K]: 5
Connection for ext. temperature sensor: ETS-D5
Fixed safety circuit [°C]: 550
Set-up plate material: ceramic
Set-up plate dimensions [mm]: 260 x 260
Heating rate (1l H2O in H1500) [K/min]: 5
Dimensions (W x H x D) [mm]: 300 x 105 x 415
Weight [kg]: 6
Permissible ambient temperature [°C]: 5 - 40
Permissible relative humidity [%]: 80
Protection class according to DIN EN 60529: IP 21
Voltage [V]: 230
Frequency [Hz]: 50/60
Power input [W]: 1520
