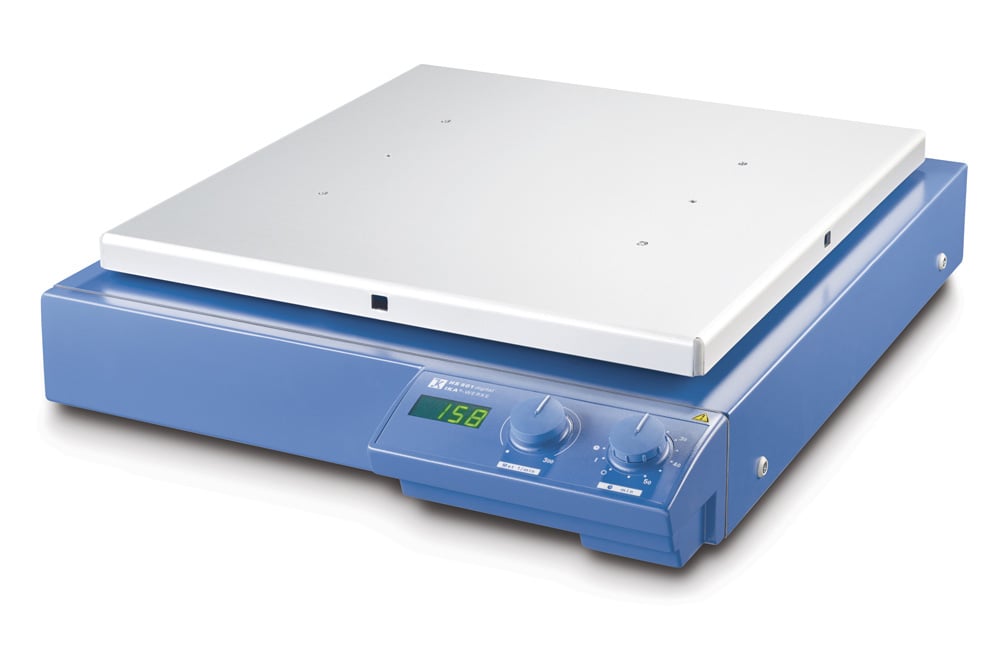

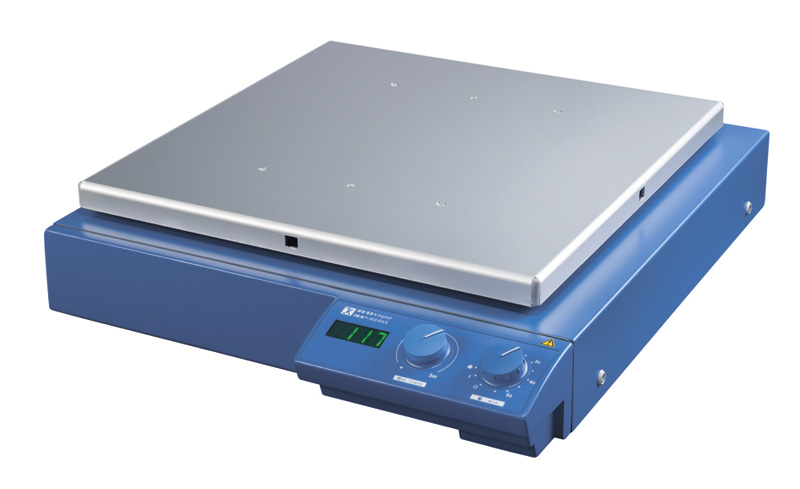

HS 501 digital
64 820 SEK
- Betala säkert mot faktura
- Möjlighet att få offert per e-post
- Maila oss, vi svarar snabbt!
Beskrivning
Art.nr: 0025002982
Low profile laboratory shaker with large mounting surface and load capacity of up to 15 kg.
- Infinitely variable speed control from 0-300 rpm
- Digital display
- Orbital diameter 30 mm
- Ideal for all lying vessels, e.g. separating funnels
- Continuous operation (endless) even under extreme loads
- Timer function
- Attachments are not included in delivery, please order separately
- Integrated USB and RS 232 interface
Type of movement: reciprocating
Shaking stroke [mm]: 30
Permissible shaking weight (incl. attachment) [kg]: 15
Motor rating input [W]: 70
Motor rating output [W]: 19
Permissible ON time [%]: 100
Speed range [rpm]: 0 - 300
Speed display: 7 segment LED
Timer: yes
Timer display: scale
Time setting range [min]: 1 - 55
Operating mode: timer and continuous operation
Shaking table lock: no
Dimensions (W x H x D) [mm]: 505 x 120 x 585
Weight [kg]: 26
Permissible ambient temperature [°C]: 5 - 50
Permissible relative humidity [%]: 80
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: yes
Voltage [V]: 230
Frequency [Hz]: 50/60
Power input [W]: 74
Fuse: 2x T4A 250V
Filer och media
 | Data Sheet |
| Brochures Shakers |
| Manual KS 501/HS 501 digital plus |
