MATRIX Orbital Delta FP
30 725 SEK
- Betala säkert mot faktura
- Möjlighet att få offert per e-post
- Maila oss, vi svarar snabbt!
Beskrivning
Art.nr: 0010006252

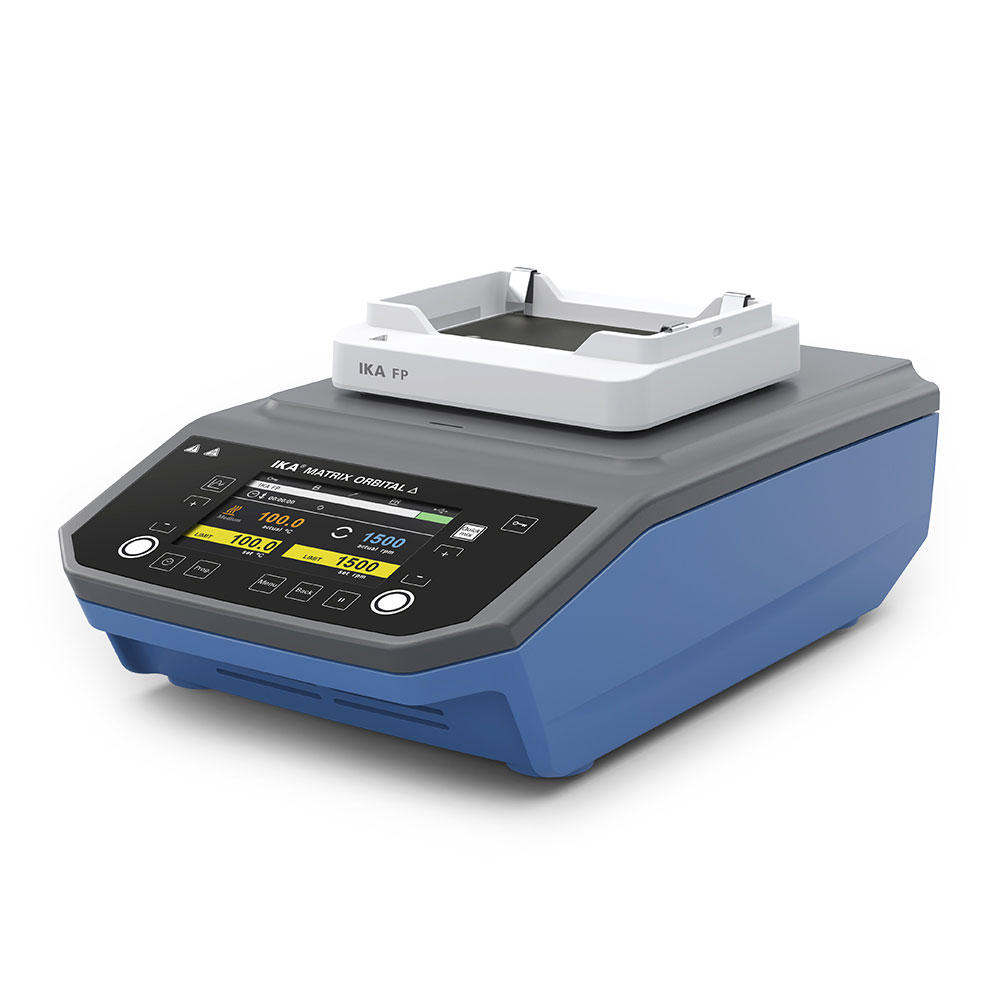

The IKA Matrix Orbital Δ FP is part of a new and powerful product family of thermoshakers available. IKA Matrix Orbital Δ FP mixes, heats and has a universal holder for microtiter plates. Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications. No cross-contamination and an optimal mixing result.
In addition, IKA Matrix Orbital Δ FP comes with numerous user-friendly features:
- Large and clear display with a convenient menu structure allows for intuitive operation
- Stable quick lock for fast and easy change of inserts and attachments as well as automatic attachment detection
- Speeds of up to 2,000 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
- Programmable ramps allow for automatic execution of mixing and heating tasks
- Smart speed adjustment according to insert, attachment and filling volume
- Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness
In addition, IKA Matrix Orbital Δ FP comes with numerous user-friendly features:
- Large and clear display with a convenient menu structure allows for intuitive operation
- Stable quick lock for fast and easy change of inserts and attachments as well as automatic attachment detection
- Speeds of up to 2,000 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
- Programmable ramps allow for automatic execution of mixing and heating tasks
- Smart speed adjustment according to insert, attachment and filling volume
- Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness
Type of movement: orbital
Shaking stroke [mm]: 3
Maximun load [kg]: 0.3
Permissible ON time [%]: 100
Speed min (adjustable) [rpm]: 300
Speed range [rpm]: 0 - 2000
Speed display: TFT
Speed deviation [rpm]: ±30
Speed adjustment: 10 RPM Steps
Timer: yes
Timer display: TFT
Time setting min. [s]: 1
Time setting max. [min]: 6000
Operating mode: timer, continuous and program operation
Touch function: no
Shaking table lock: no
Working with microtiter plates: yes
Number of microtiter plates: 1
Heating temperature range [°C]: room temp. +4° - 100
Heat output [W]: 100
Heat control: TFT
Set temperature resolution [°C]: ±1
Temperature control accuracy [°C]: ±1.0 (@ 20°C … 45°C); ±4.0
Temperature stability [°C]: 0.5
Temperature homogenity [°C]: ±0.5 (@ 20°C ... 45°C); ±1.5
Heating rate [°C/min]: 18
Temperature display: yes
Number of PCR plates: 1
Number of Deep Well Plates (DWP): 1
Dimensions (W x H x D) [mm]: 216 x 147 x 351
Weight [kg]: 9.2
Permissible ambient temperature [°C]: 5 - 40
Permissible relative humidity [%]: 80
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: yes
Bluetooth interface: no
WiFi Interface: no
Analog output: no
Voltage [V]: 100 - 240
Frequency [Hz]: 50/60
Power input [W]: 240
Power input max. [W]: 240
Fuse: 2x T4A 250V
Shaking stroke [mm]: 3
Maximun load [kg]: 0.3
Permissible ON time [%]: 100
Speed min (adjustable) [rpm]: 300
Speed range [rpm]: 0 - 2000
Speed display: TFT
Speed deviation [rpm]: ±30
Speed adjustment: 10 RPM Steps
Timer: yes
Timer display: TFT
Time setting min. [s]: 1
Time setting max. [min]: 6000
Operating mode: timer, continuous and program operation
Touch function: no
Shaking table lock: no
Working with microtiter plates: yes
Number of microtiter plates: 1
Heating temperature range [°C]: room temp. +4° - 100
Heat output [W]: 100
Heat control: TFT
Set temperature resolution [°C]: ±1
Temperature control accuracy [°C]: ±1.0 (@ 20°C … 45°C); ±4.0
Temperature stability [°C]: 0.5
Temperature homogenity [°C]: ±0.5 (@ 20°C ... 45°C); ±1.5
Heating rate [°C/min]: 18
Temperature display: yes
Number of PCR plates: 1
Number of Deep Well Plates (DWP): 1
Dimensions (W x H x D) [mm]: 216 x 147 x 351
Weight [kg]: 9.2
Permissible ambient temperature [°C]: 5 - 40
Permissible relative humidity [%]: 80
Protection class according to DIN EN 60529: IP 21
RS 232 interface: yes
USB interface: yes
Bluetooth interface: no
WiFi Interface: no
Analog output: no
Voltage [V]: 100 - 240
Frequency [Hz]: 50/60
Power input [W]: 240
Power input max. [W]: 240
Fuse: 2x T4A 250V
