VACSTAR digital
34 094 SEK
- Betala säkert mot faktura
- Möjlighet att få offert per e-post
- Maila oss, vi svarar snabbt!
Beskrivning
Art.nr: 0020016236

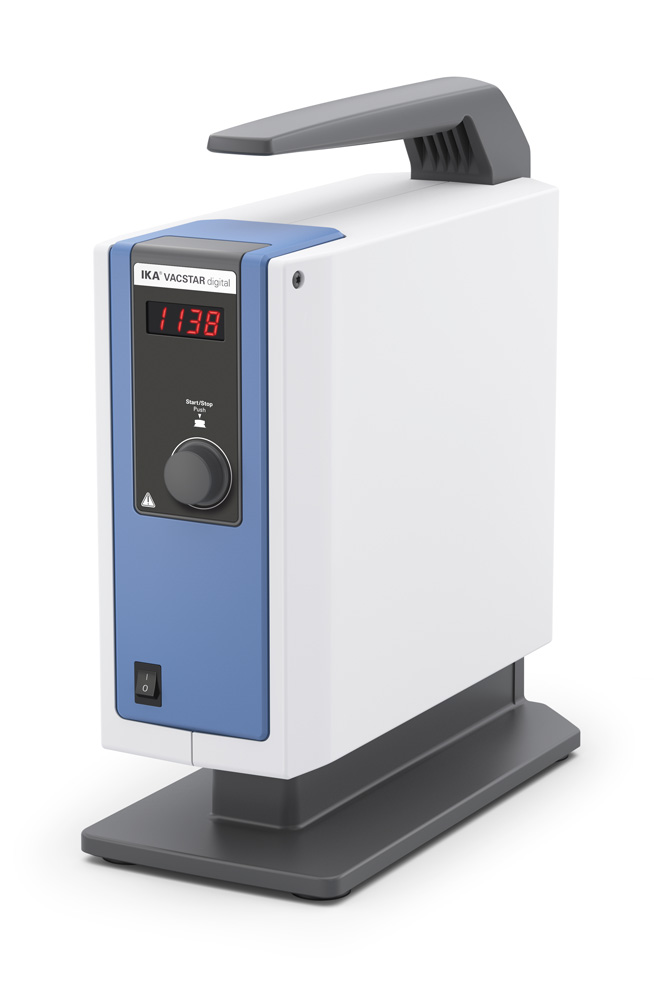

The four-chamber membrane vacuum pump convinces with its high suction capacity, low space requirement and high serviceability. The setting of the parameters is carried out through a rotary-push button over a digital display showing current rpm.

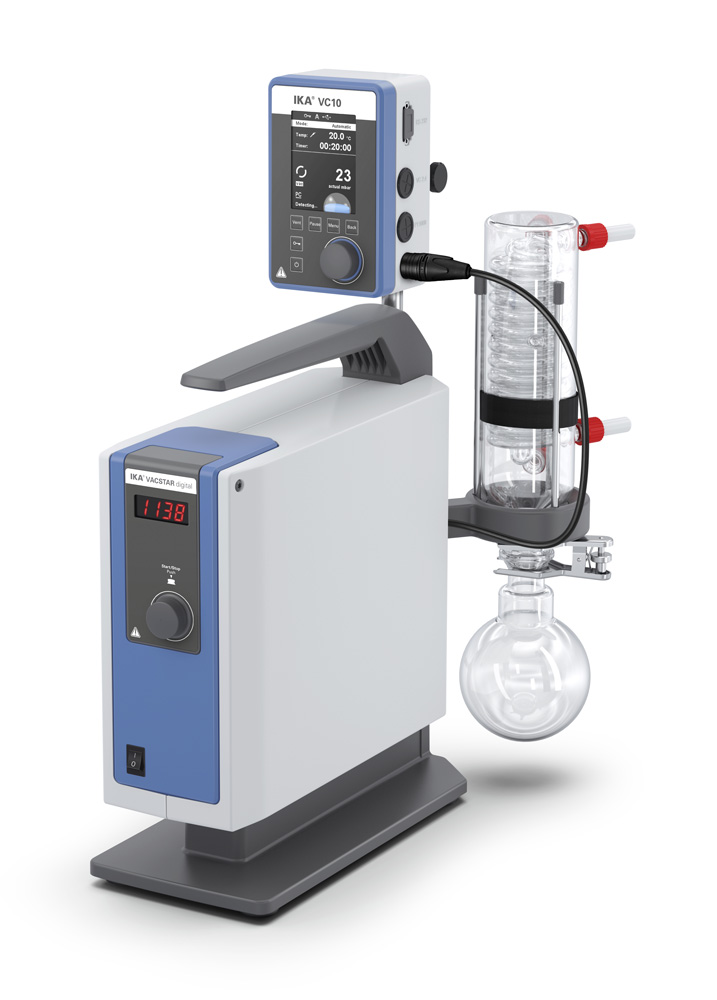

Automated processes are controlled with the vacuum controller VC 10, which is available as an accessory. An analogue cable which is required for connecting pump and controller is included in the delivery of the pump. Additionally it is recommended to use the VSE 1 vacuum safety emmission. It prevents that solvents are released into ambient air.
The Vacstar digital is used for dry and oil-free applications in the laboratory. The membranes of the pump are particularly chemical resistant.
Pump rate max. (50/60Hz) [m³/h]: 1.32
Pump rate max. (50/60Hz) [l/min]: 22
Final pressure without gas ballast [mbar]: 2
Suction levels: 4
Cylinder: 4
Connection diameter suction side [mm]: 8
Connection diameter pressure side [mm]: 8
Gas ballast valve: no
Input pressure [mbar]: 2 - 1030
Boiling point detection: no
Solvent library: no
Two-point control: yes
Analog speed vacuum control: yes
Speed adjustment: Turning knob
Speed range [rpm]: 285 - 1200
Display: LED
Vacuum sensor: no
Venting valve: no
Condensate trap: no
Emission condenser: no
Noise at low. pressure [dB(A)]: 54
Material in contact with medium: Al2O3; PTFE; FFPM; PPS; NBR
Housing material: alu-cast coating / thermoplastic polymer
Clean room qualified: no
Explosion proofed: no
Dimensions (W x H x D) [mm]: 150 x 375 x 370
Weight [kg]: 11.5
Permissible ambient temperature [°C]: 5 - 40
Permissible relative humidity: 80% (up to 31°C), decreasing linearly to max. 50 (@40°C)
Protection class according to DIN EN 60529: IP 20
RS 232 interface: yes
USB interface: yes
Analog output: no
Voltage [V]: 100 - 240
Frequency [Hz]: 50/60
Power input [W]: 130
Power input standby [W]: 3
